Combined all in one 16 bar pressure 11kw 15kw 22kw pm vsd screw air compressor 16bar for fiber laser cutting machine

Contact

Product Details

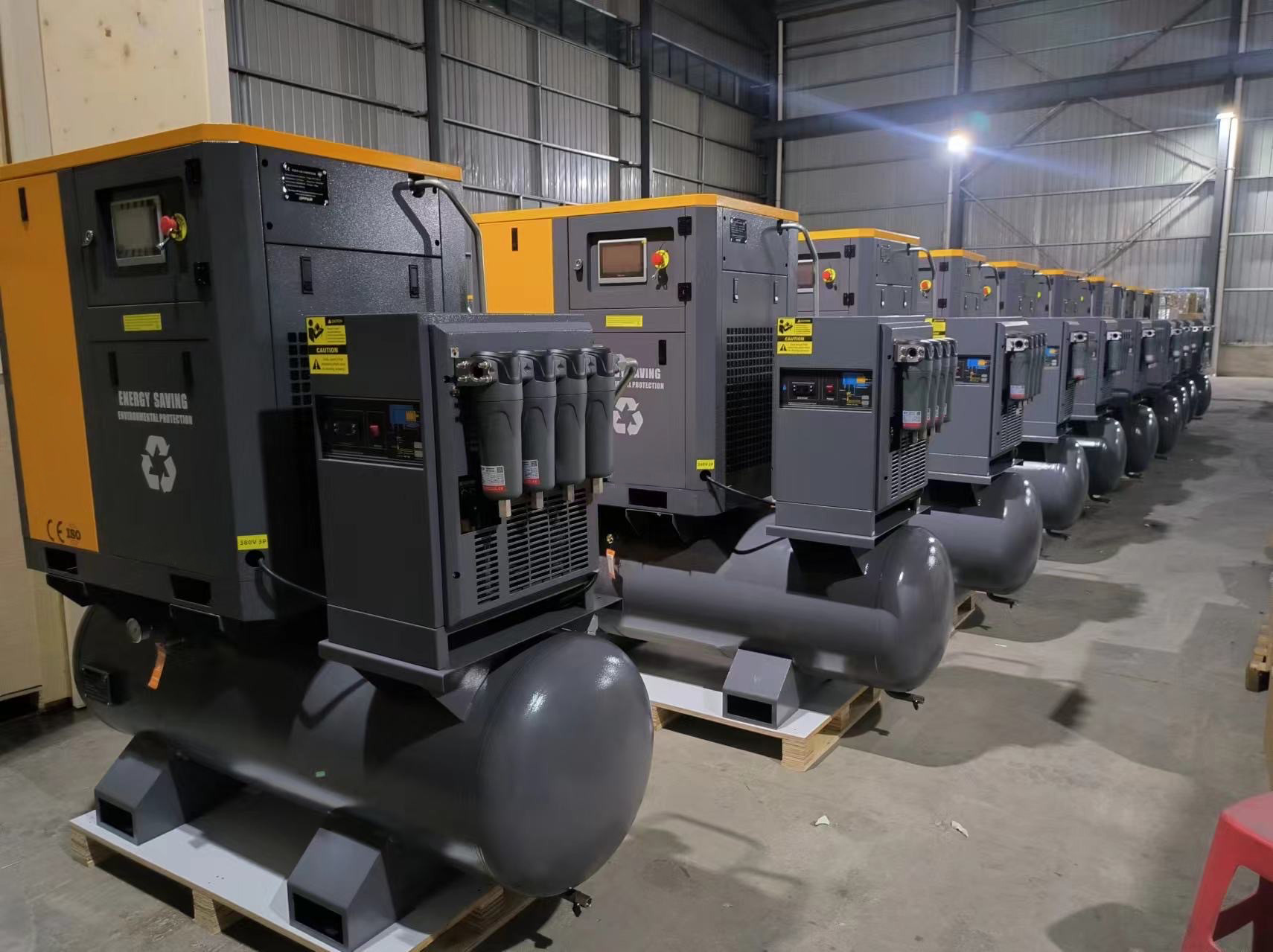

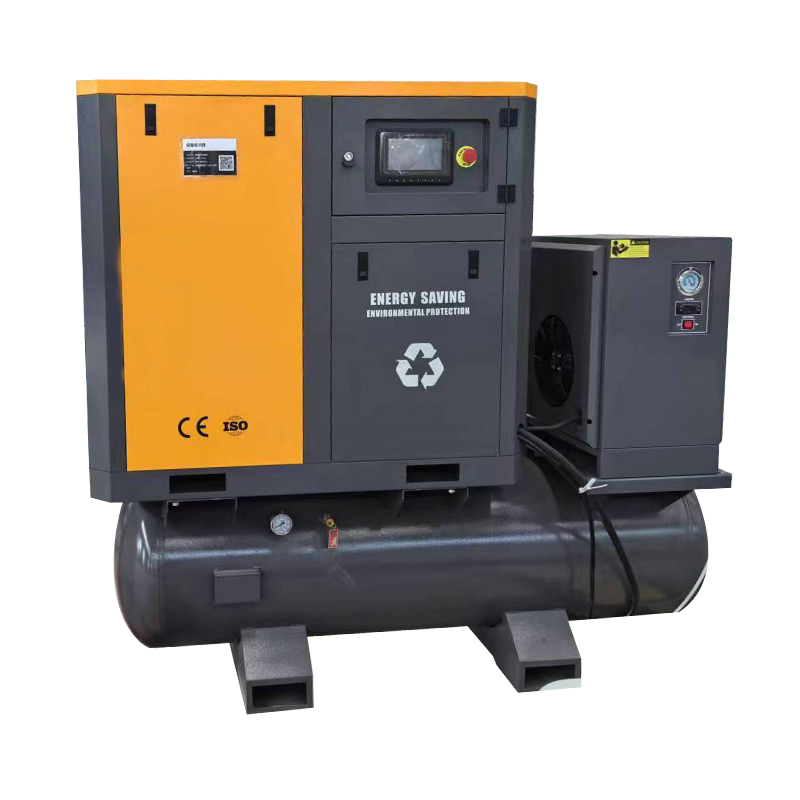

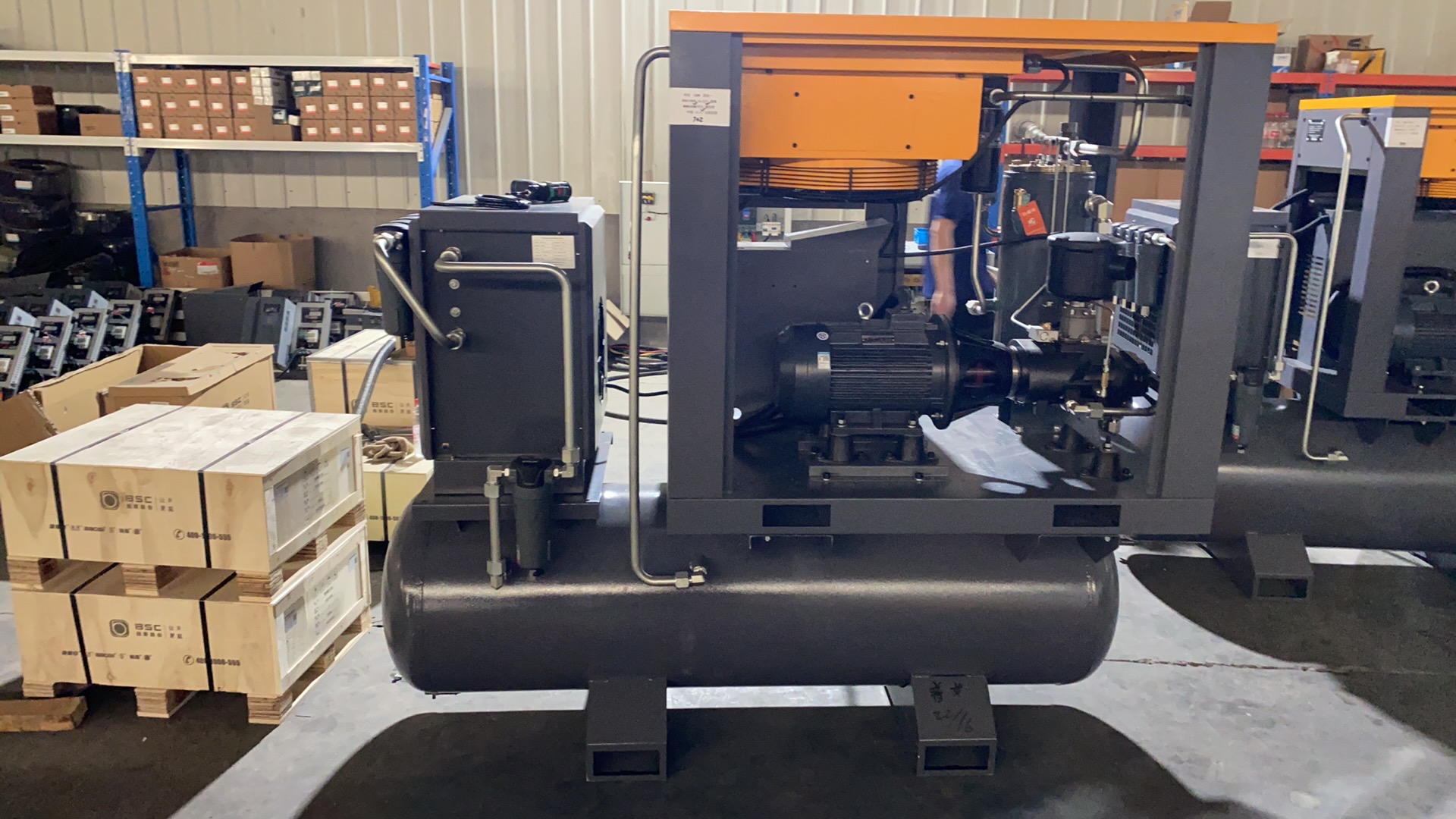

Tank and Dryer Filter Mounted Screw Air Compressor (4-in-1 type)
Model
GLX-10A
Free air deliver/Discharge pressure(m³/min/Bar)
0.75(m³/min)/8 bar
Free air deliver /Discharge pressure (CFM/PSI)
27/116
Compression stage
Single stage
Ambient temprerature
-5--+45℃
Cooling mode
Air cooling
Tank volume
300L
Lubricant (L)
3.7L
Noise Level (Db)
62±2
Drive method
Belt driven
Electricity (V/ph/Hz)
380v/220v/customized voltage
Motor power (KW/HP)
7.5kw/10hp
Starting method
Y-△Starter (Star delta starting)
Dimension L*W*H (mm)
1900*730*1520mm
Net Weight (kg)
425kg
Air outlet diameter (inch)
1/2''
