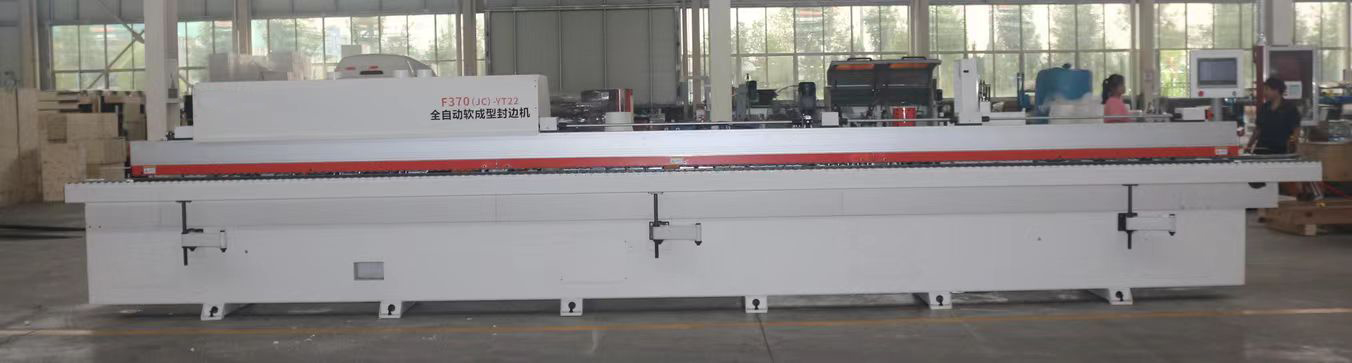

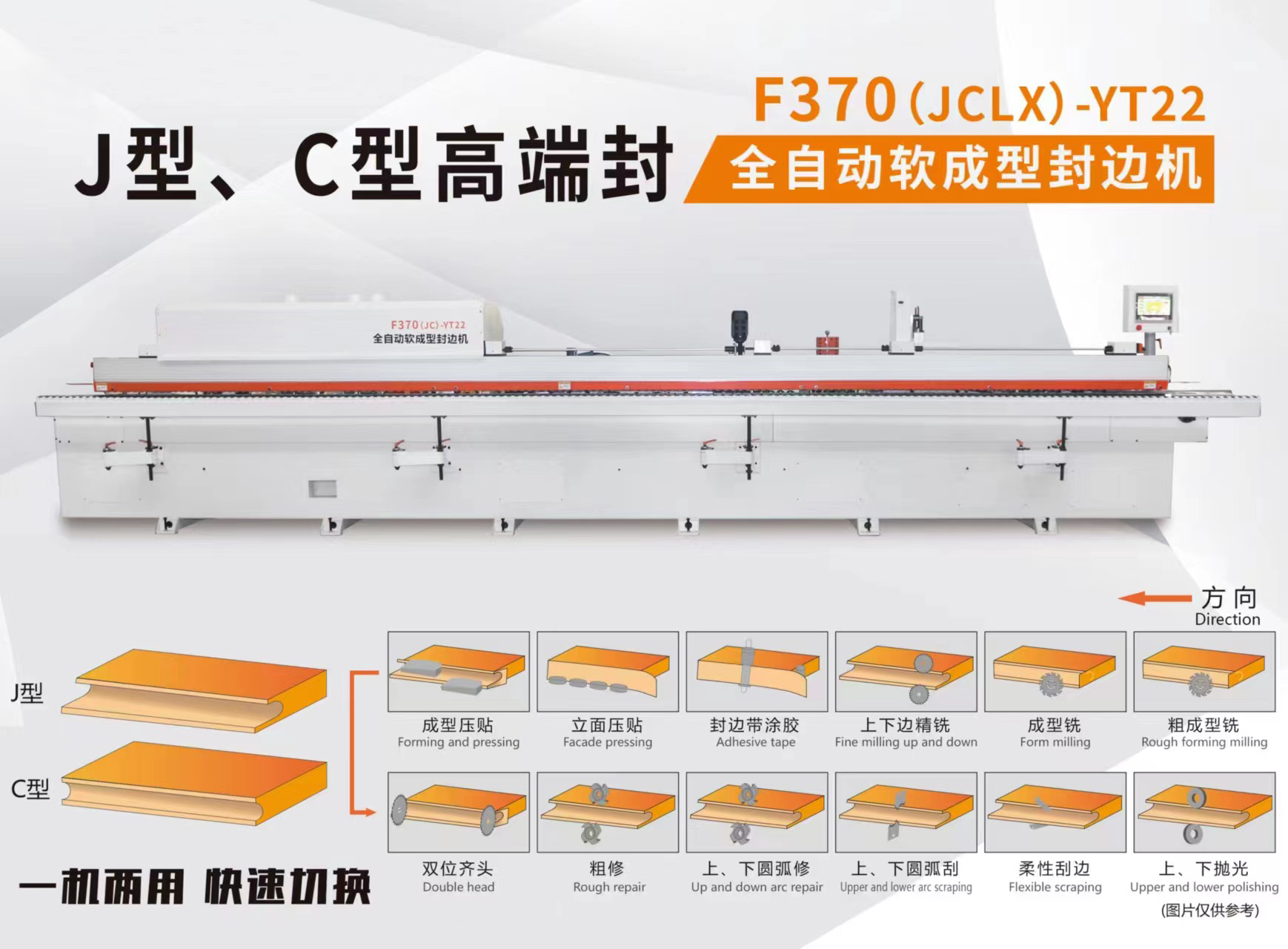

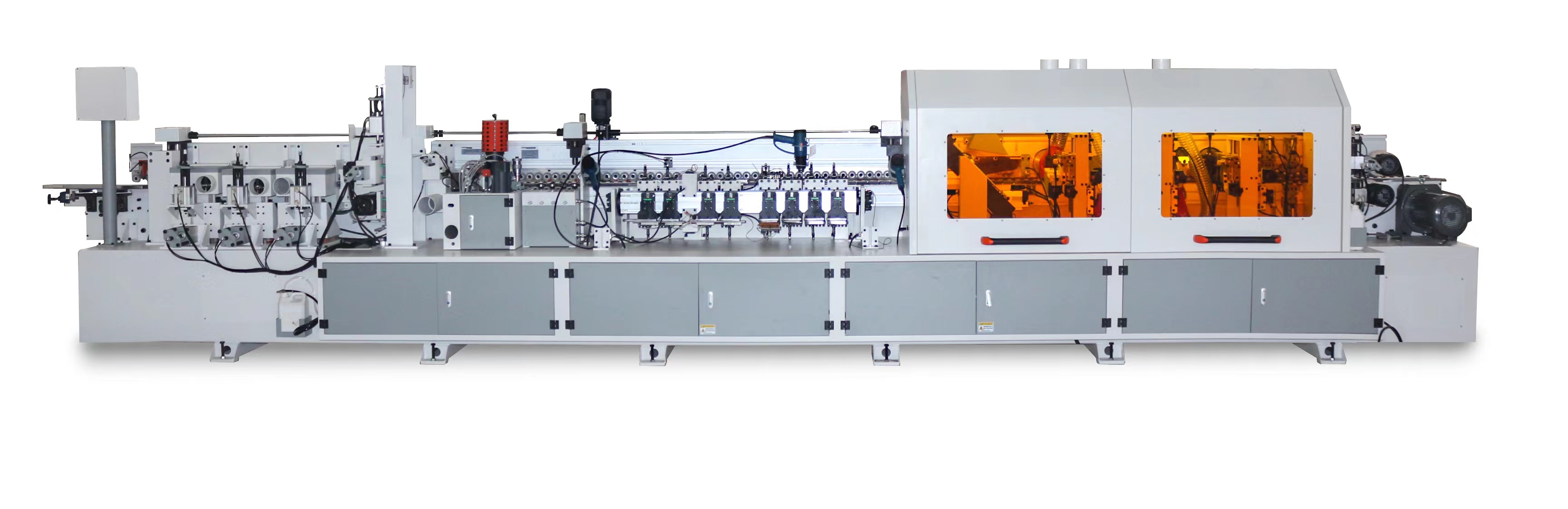

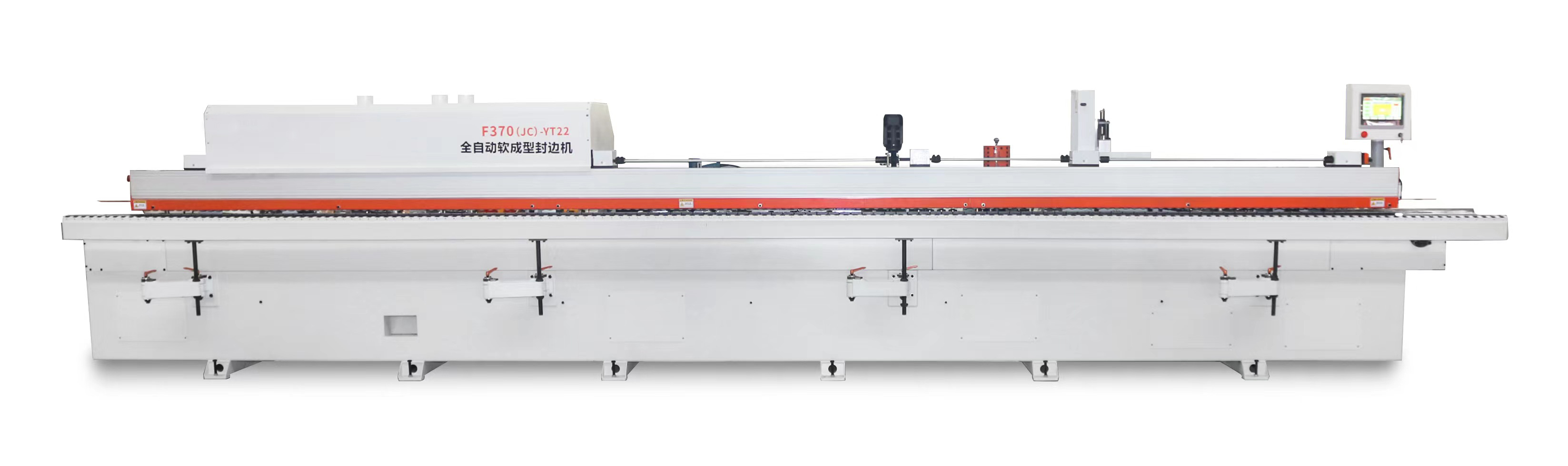

J/C/shape l type automatic soft forming edge banding machine

Model

F370

Voltage

380V/50hz/3 phase can customize

Total power

42kw

Air pressure

0.6-0.8Mpa

Tank volume

5L

Exernal dust collector

Φ100*8

Glue pot operating temperature

110℃-210℃

Edge band thickness

0.52-0.56mm

Glue pot

3000ml

Feeding speed

12m/min

Type of hot melt adhesive

PUR EVA

Edge band width

J type 54mm C type 33mm

Plate size

≥250*120mm

Plate shape

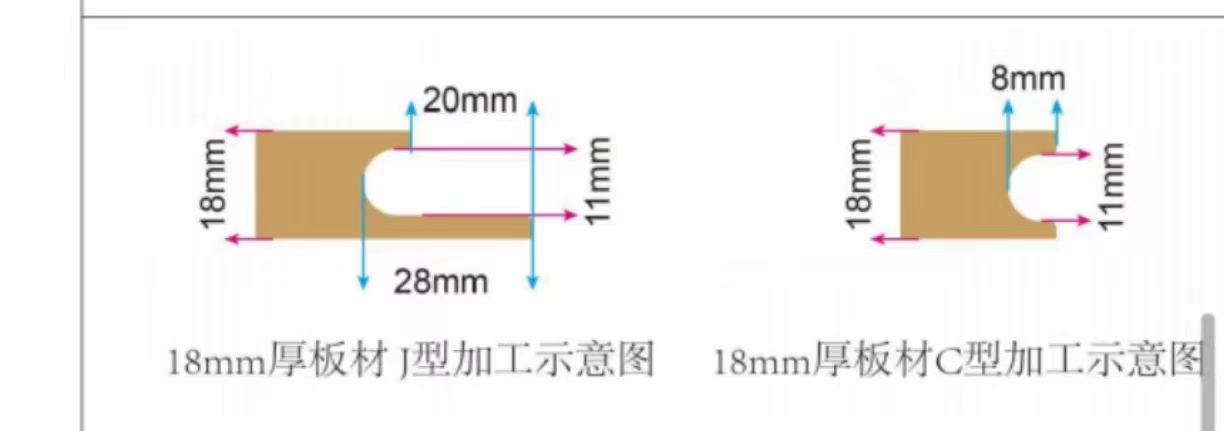

J shape, C shape（customized L shape, bevel straight edge）

Edge banding material

PVC （matter surface is recommend, no glossy surface is required）

Dimensions

8300*1000-1560*1610

Net weight

2700kg
